Chris Leighfield,

Sprite to Vibsa's With Determination.





First an introduction.



I first met Chris in the early sixties when we were doing National trials on a weekly basis.

 Chris was already up front with the top solo Guy’s by then.

I was now a permanent passenger in Dan Shorey’s Ariel outfit.

Then in 1963 I got the first TR 20 Triumph Cub out of the factory with side points fitted.

 Chris also had a one of the first of this batch.

We were both to some extent looked after by the factory, with parts, and upgrades.

(Story fifty years of Triumph TR20 Cubs)



Photo Courtesy Deryk Wylde.

I then met Chris quite regularly at North Bar Garage, where he, and usually his father came to pick up the parts that he needed that were sent from the factory for him.

 It was more convenient for Chris to pick these up from North Bar, as he could not leave work in the day time to go to the Triumph factory. The parts could then be picked up in the evening after work. Dan, or father Bert, used to go to the factory every week to pick up Triumph spares, so the system worked well for Chris.



But I then lost touch with Chris when he emigrated to Australia in 1972.



Then several years ago I was doing some research I think on Sprite trials bikes, and came across this publication in a Club trials Magazine, named “The Golden Years.” Written by Chris Leighfield.

I have got to get back in touch with him I thought, so emailed the club sectary and asked for his email address.

It worked, and I got back in touch with Chris, and we mailed each other three or four times a week regularly, it was then, that I learnt about his long battle with cancer.

Most would just give up, not Chris; he just got on doing what he did best, kept his brain working, and treating life as normal has it could be.

He had a weekly college course, so that he could do the machining he needed for the bike he was restoring, or building.

And being the perfectionist he was, every little detail had to be right.

Summing up, the guy was Tall in stature, tall in life, and with determination just the same.

~~~~~~~





Looking for a log book for the bike that is pulling the Sidecar-e ambulance, in 2017,  I found some of the

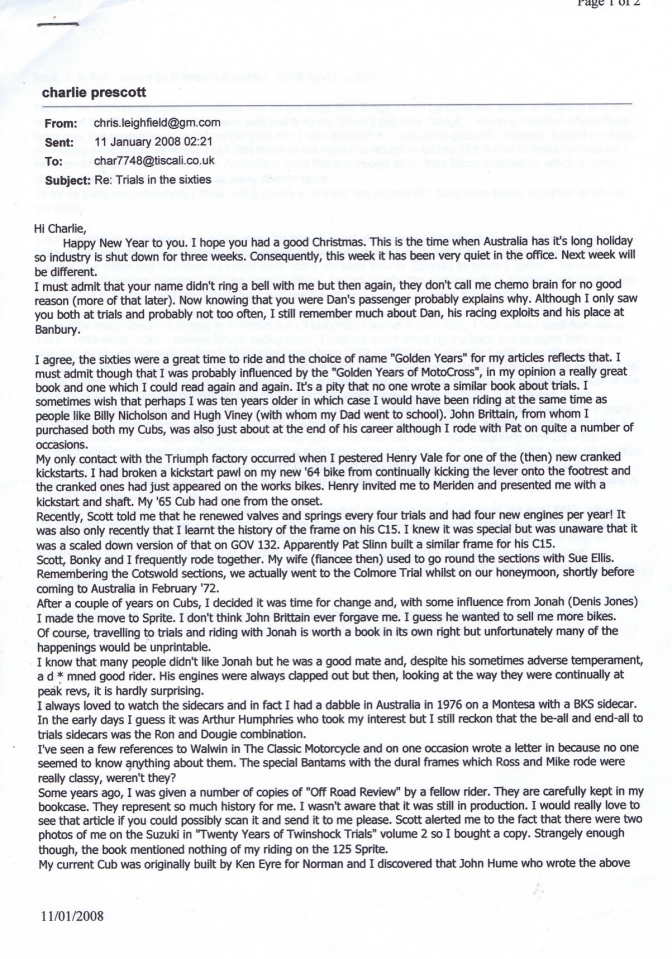

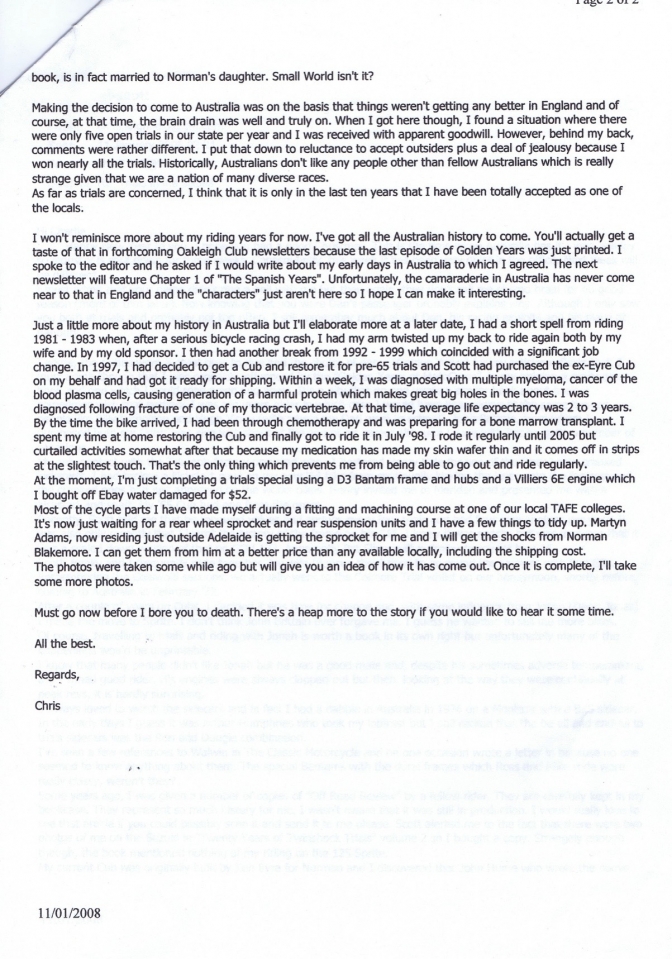

e-mails from Chris in 2008. There are more, but here is a start. What a bloke!..





Chris said to me, that the inspiration for the Vibsa bikes, was an image of John Draper sat on his little Bantam at the start of the 1956 Scottish Six Day trial, He asked if I knew where he could find this picture.

I let him down, as I did not know, It is not until I made contact with Deryk Wylde. That I now have this picture to use.



Photo Offroadarchive. With Deryk's Permission.



 I bet Chris is up there saying Yesss, that is the one.

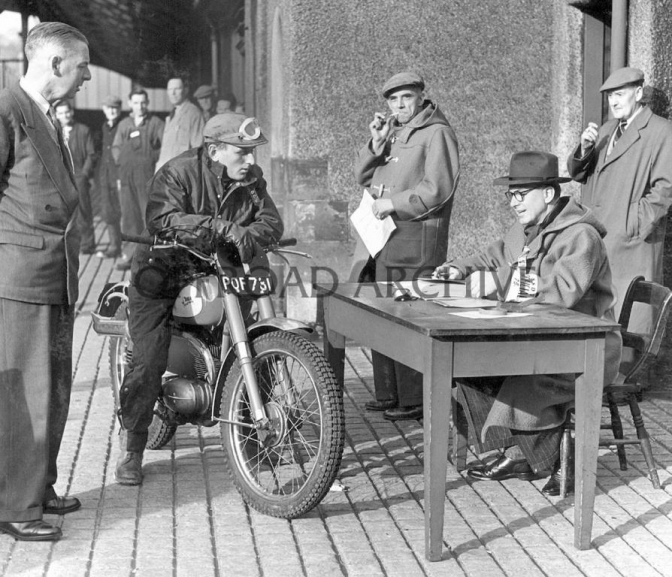

Deryk has now let me use this other photo of Johnnie Draper in the same Scottish trial of 1956, and you can see from this superb shot what Chris had in his head, for the bikes he built from this Photo...



Photo Courtesy Offroad Archives...





I will build on this page with the Sprite build, and more information later.





 I will leave Roger Now owner of Vibsa... Number One, with his tribute to the Guy.





I knew Chris when he first started riding in Trials with the Castle Bromwich Motor Club when we were both 14 in the early 60's. We used to have events at the old brickworks at Kingsbury when we were both 14 and too young to ride on the road. Chris moved on to the Birmingham MCC and I rode for Solihull MCC until we started Sutton Town MCC but we remained good friends and competitors over the years while he gained support with Sprites and Cubs. Chris's bike preparation was always top notch and you could guarantee his bike would be immaculate at the start of the second day in a two-day event.

Chris emigrated to Australia in 1972 and was Aussie Open champion three years running in the early 70's. Like the rest of us when we get a bit older he turned to Classics and won the Aussie Classic title 7 years on the trot. I caught up with him again when I emigrated in 1980 and found that I still couldn't beat him.

As Charlie said, he built three Villiers engined, Bantam framed Vibsa's which were all superb in appearance and I bought the first one which I called V1. We had some teething problems with it, which Chris insisted on getting right and he persevered until everything was fixed which was typical of Chris.





He generously responded to all technical queries from many guys over here and nothing was too much trouble for him to try and sort out.

Chris finished his working life at car maker General Motors Holden in Melbourne as a power plant (engine) engineer a couple of years ago to continue his battle with his cancer.

I was speaking to him only a day or so before his passing, and he was still telling me things about bikes.

The trials community has lost a great guy and I have lost a great mate

Sincerely

Roger Galpin.

~~~~~~~

Charlie:> Thank's Roger for that.

This is the bike that Roger bought from Chris, I now have all of the notes that Chris made while trying to get the bike right, Clutch slip, Kickstart etc...

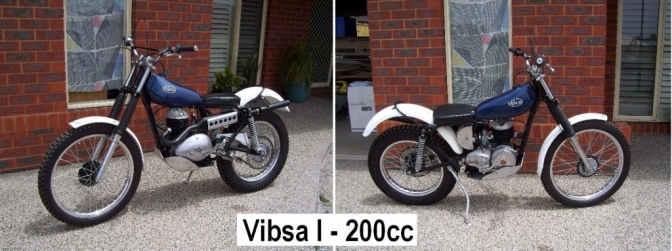

           This is a better size picture of  Vibsa "One".



I now have located all the images that Chris sent to me, and have all the mails about the builds but you will have to be patient, while I transfer the material from my old computers.



I am still doing this very slowly but I will get there for you.

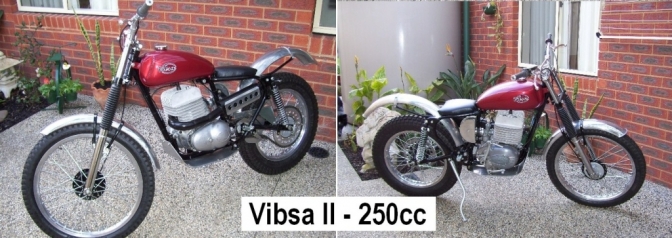

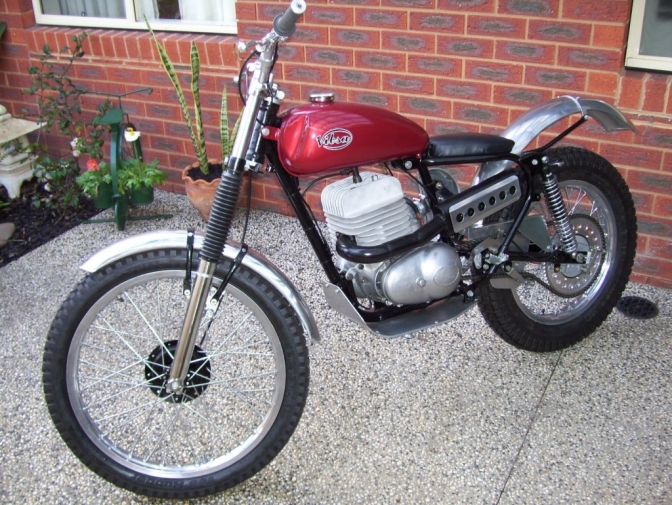

Now Vibsa "Two".

~~~~~~~





  Thing is with these machines being built in Australia, all the parts are really difficult to get.

 I have tales that Chris told me about actually making sprockets from scratch, on a college notching  machine, with dividing head fitted. And making machines to make parts.

This how dedicated to what he was trying to achieve he was.

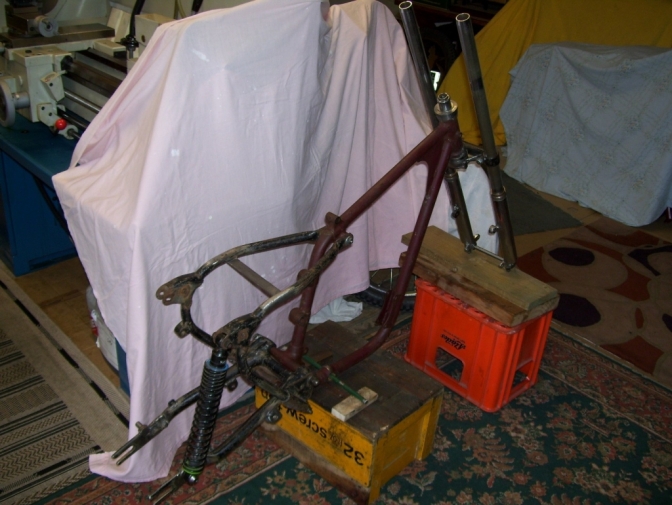

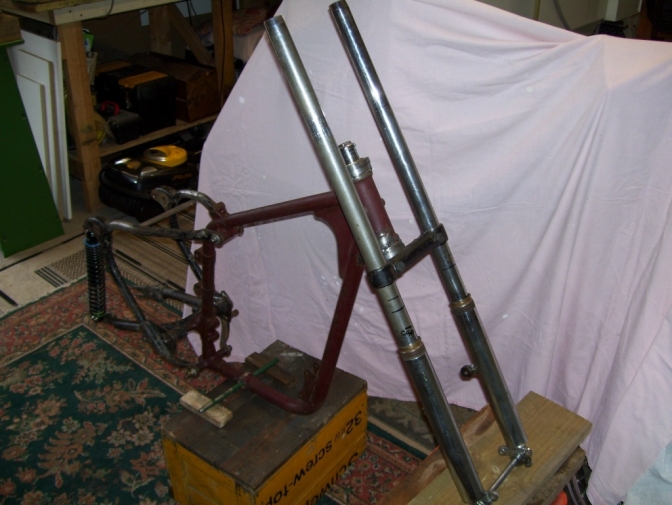

 Here are a couple of photos of how "Vibsa Two" started off...





 And the Chopped down Chopper forks.





I now have found the mails that Chris sent me with the stories of the builds,

they will be up shortly, now I am back working on this page.

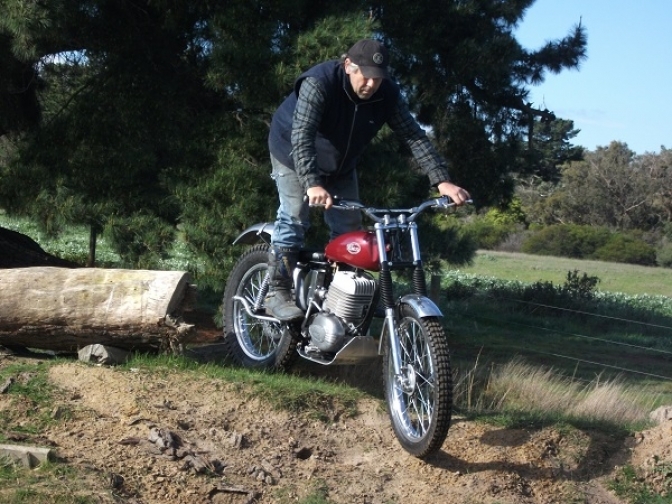

Photo Courtesy Geoff Lewis.

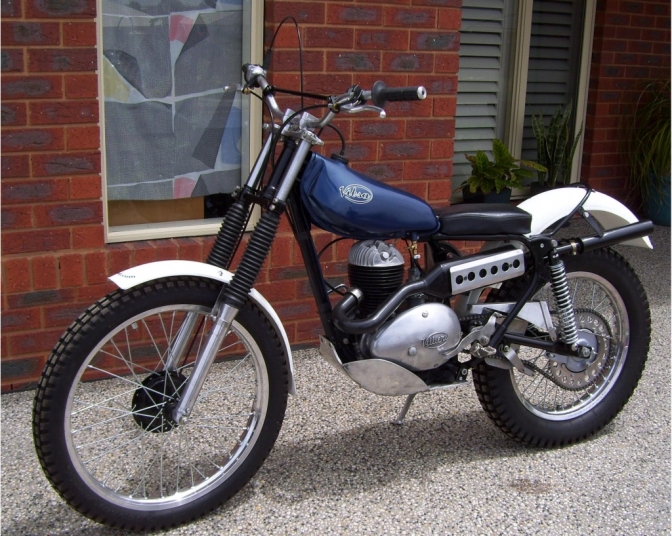

 This is Geoff Lewis owner of "Vibsa Number two".



Chris fitted the engine he had built for Geoff into this frame, this then left him with the engine for,"Vibsa Number Three".



Chris felt just well enough to set his sight  to build the last bike, and finished it just before Christmas 2010.

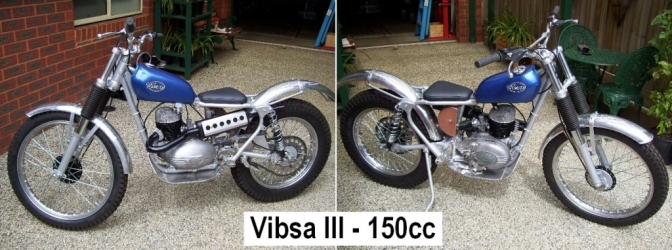

"Vibsa "Three",

Was unfortunately the last of the bikes built by Chris.





The story of this build will follow once I have been through the mails Chris sent me, with the information on the build, and his determination to get the bike finished...

~~~~~~~

The Sprite Build

We will then start on the "Sprite" story. and the tales he told me about riding with "Jonah".

Dennis Jones...



Also the story of the Sprite he built from a box of rusty parts.



Photos the Leighfield Family.

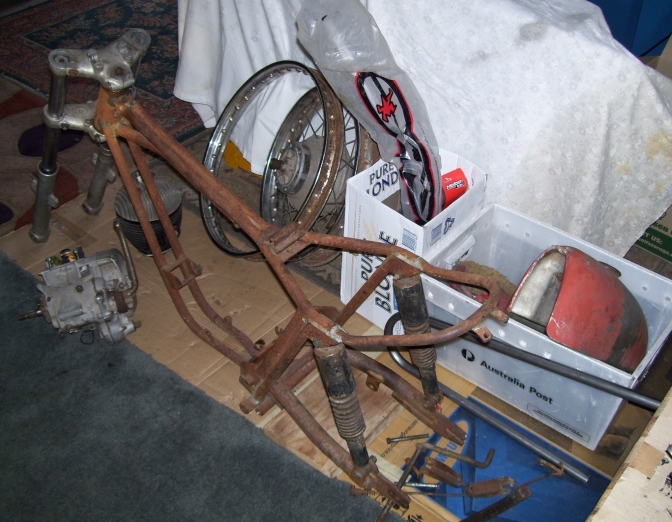

Here is the box of Sprite Villiers bits.when Chris started the build up of the Sprite.

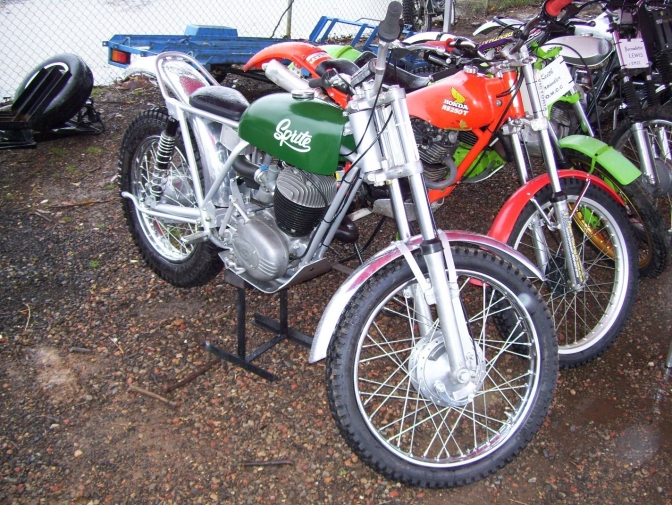

And here is the "Sprite" when Chris had finished using his Magic on it.

The late Frank Hipkin. Mailed Chris to say how good a job he had done rebuilding the bike.

~~~~~~~

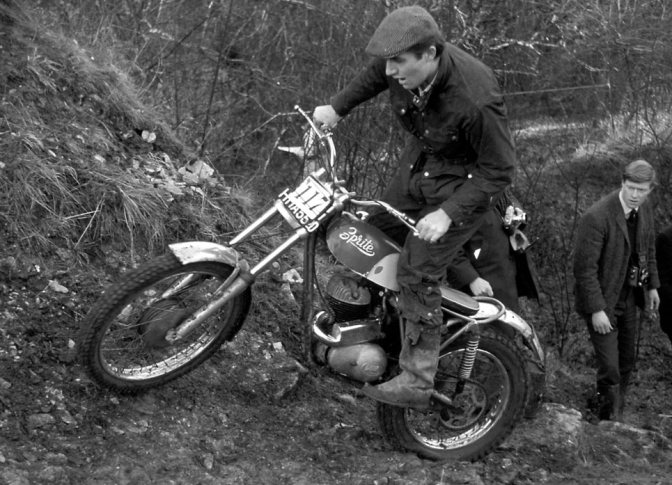

Sprite test rider Dennis "Jonah" Jones.

Photo Courtesy Deryk Wylde ORR-e



"Jonah" riding his 1966 Sprite.



OK, this next bit is going to be a jumble until I have sorted it.

And I have so much more, but find it difficult to read sometimes.



OK...

Piecing together what information I have found, and talking to people with knowledge of the Midlands Trials scene at the time, along with the help from the Hipkin family.

This is my account of the time scale of the Villiers powered Sprites.



  • 1963
  1. Development started to produce a Sprite trials bike. Starting point, a CoTTon frame that had the front frame loop replaced with twin small diameter tubes, to gain ground clearance. Easy with a plumbers pipe bender? Don’t forget half of the team was a plumber. Then looking at building the frame for production, ( being a plumber) it would make sense to bend the top tubes running through to the seat rails in just two lengths! The rest still looked very much like a CoTTon.

(This development is totally as I see it and the way I would have gone about the task)!



  • 1964.
  1. First production frames are produced; we now know that AMC forks were used on the first batch of bikes. Also that the Glass-fibre fuel tanks were very bulbous and to be honest slightly ugly? British Racing Green in colour.



  • 1965.
  1. More development had refined some areas. In the design, ground clearance was slightly higher. During this period the new Monza Starmaker engined bike was being developed. This appeared in the press in October. The bike had 10 ½” ground clearance but still with a seat height of only 29”. The forks were of leading link type, with longer Girling units, and producing a travel movement of 7”. Nylon pivot bushes were fitted to these and to the swinging arm. Price in kit form £184, while the Standard trials, price was still kept to £149 (32A engine) only £4 more than the year before. Jonah rode in the Scottish for the first time on a Sprite.



  • 1966.
  1. This is the year that the Sprite kits were pushed to the fore and sales coming from the novice rider, as well has the professional? Some well known names were now riding Sprite machines as well as the two development riders. I have a photo of Sam Cooper on a Sprite fitted with Bultaco forks and front wheel. The results started to come during 66 and Sprite was now a leading trials winner as well.



  • 1967.
  1. As far as I can see this is the year when the frame was modified again, and this is the years that the two seat tubes were lost. So Sprites without these tubes are not Pre65!!
  • Dennis Jones "Jonah".
  • Frank Hipkin said that when Sprite's were still built at the
  • "Sweet Shop".
  • Jonah would sometimes be there for 24 hours working on his bike he was allowed the run of the place and used what was necessary for him to make his bike ridable,along with fitting New tyres.
  • He would then go off to  Tipton practising taking with him a small axe has an hammer and a blunt and bent screwdriver a pair of "Mole" grips and a New set of piston rings. when he got back the tyres that he had fitted would be worn out.but left on for the week ends trials.
  •
  • When asked why if he was riding for Sprite in 1964 why did he not ride in the Scottish Six Days Trial.
  • Charlie> If you had known "Jonah" at this time you would have known why he did not ride in the previous years Scottish. (he could not afford to go)
  • The guy only wanted to be a top flight trials rider, and all he had to ride was a beat out old Greeves  with a clapped out engine.
  • He arrived at Frank's Shop on this, and asked Frank to build a trials bike around him.
  • All Frank had was an old CoTTon, so they started with that, and then set to to modify the bike to Jonah's taste and riding style. This is when I first saw the bike in oxide red, with two tubes running under the engine, every time out the bike would have a different fuel tank fitted, and a different colour.
  • One weekend on one of these was placed a "Sprite" tank sticker.
  • The "Sprite" trials bike was Born.
  • 1965, And Jonah did ride in the Scottish trial, Frank supplied him with a frame, Roy Bevis lent Dennis the front forks and wheel, from his bike for the week, and  Dennis fitted  the engine from the CoTTon into it.
  • "Jonah" could only ride a trials bike in one way (spectacularly) with the throttle full open, not good for any engine, and more so not for a worn out one.
  • He could not hold down a job, as all he wanted to do was practice his trials riding.
  • If he had new tyres,he would wear them out practising all week for the following weekends trial, and then ride with these worn out tyres, and give the performance of the day.
  • If you think you could ride on a shoestring budget and compete in national trials to this level, Jonah went one step further.
  • The guy turned up at the Scottish wearing his Barbour suit, and when asked for his luggage he said he had none!! Only a pair of trainers in his pockets, and he never did wear gloves, what ever the weather or condition.
  • He did the European Championship, and stayed over for the week with only £6 in his pocket.
  • Chris used to travel with him to trials, and said he was the best mate that he had ever had, but the escapades the two got up too was unprintable, and sadly now we shall never know.
  • One thing I can say is that "Jonah" was good at darts, but could never add up his own score, and always seemed to get a bigger total than he actually scored, A bit the same as some of his trials results.
  • The guy was a "one off Star"at the time, and only did what he did with the help of the likes of Frank Hipkin and the rest of the Midlands trials community.
  • And don't forget that this was the guy who did most of the test riding on Sprite trials bikes, and if they could stand up to "Jonah" they could stand up to anyone.
  • After cleaning a particularly hard section "Jonah" would say how was that!....... OK you would reply,
  • " So that Podged-um then" he would reply.
  • Last time I spoke to "Jonah" he was still living and working in Barcelona where he had a removal shipping company moving "Brits" over there from the Midlands for a new life.
  • If you read this "Jonah" give me a shout OK.
  • I know that you are back in the UK at the moment, 01/03/2018.
  • Respect Charlie.
  •

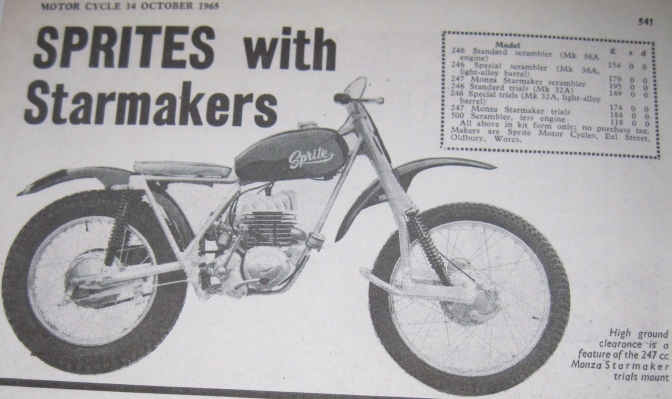

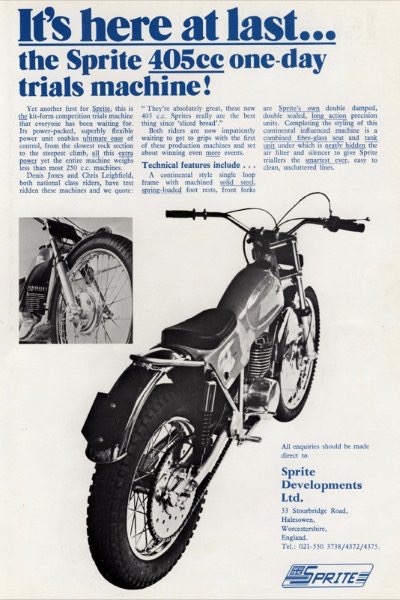

  • Sprite... sales literature.





Some of the "Sprite" advertising literature Frank sent to me at the time.







Frank could not say enough about Chris Leighfield and his professionalism in giving the guy's at "Sprite" feedback from his rides and stating what needed to be done to each machine he rode to help produce the best from it.

~~~~~~~



Chris then went on to do the same job for the



Taylor Suzuki...



Photo Alan Vines Courtesy Deryk Wylde ORR Classic Bikes.



Here Chris riding the Taylor TC120 Suzuki in the 1969 Victory trial

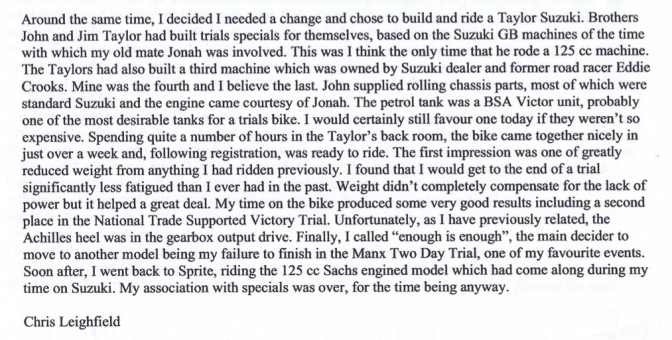

Story below Chris Leighfield...



~~~~~~~

26/07/2019...

And Over to Deryk Wylde with the story told to him by John Taylor....


Yesterday I was asked about a variation on the Suzuki trials theme that was put together in Staffordshire and was very successful in the Midlands and further afield.

This was the Taylor Suzuki and John Taylor was the man behind the project, who said:

"It started as a bit of fun really I was in partnership with the late Fred Miles at the Cannock Suzuki Centre, and Fred brought back one of the KT20 4-speed trail bikes from Golden Hillock Road where Suzuki were based in those days. We converted it for trials.

"You will probably remember the Elstar trials bikes that Alf Ellis produced in West Bromwich.

Bob Haswell who did the work for Alf had a lot of frame bends left, so we took the project on board.

We first used the BlO0p 4-speed Suzuki, then the TC120 which had six speeds- three low and three high.

We fitted forks from the T200 and KIO hubs, with BSA Victor Alloy petrol tanks.

''I think we made a dozen of them, not in kit form but ready to go.

One went to Belgium and two to France, my brother Jim and l had them and so did Chris Leighfield, Bill Price and Bert Tolfree from Stafford.

Chris was very successful, so was Bill, after all, he is the ideal rider for a mini-bike as he weighs nothing at all even when wet!"

Throughout the 1960's Chris (from Sutton Coldfield) went very well, first on James and Tiger Cubs and then various Sprites before moving to the Taylor Suzuki.

A tall, lanky figure, Chris could get the best out of the small machines on the tight Midland Centre sections, I don't think Chris ever won a National trial, but he came close several times, and later emigrated to Australia.

Bewdley clubman Geoff Brett, long-time freelance MCN correspondent for the Midland Centre, also had a Taylor-Suzuki and often said that it was 'simply the best trials bike he ever had'.

Why did the Taylor Suzukis not continue?

John said:

"We seemed to get a lot of big hills, though Bill Price could get away with it of course.

I think the mini-bike era was from about 1967 to 1971...

And after that they all faded out."

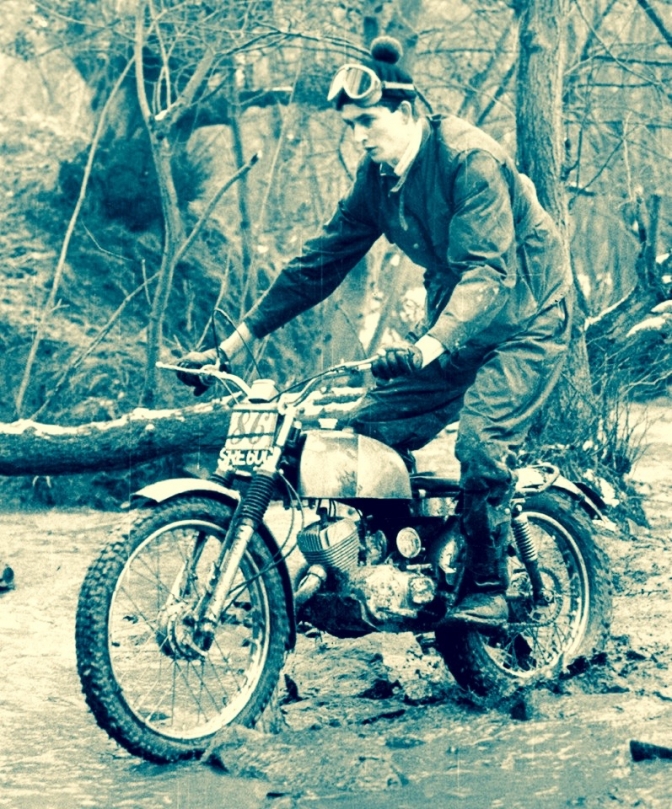

PHOTO: Chris Leighfield on his Taylor Suzuki in the 1969 Victory Trial.

Top of Form...

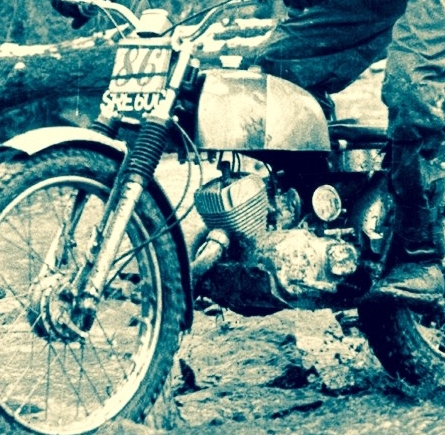

Charlie~Oo>... You can see if you look at the photo above, that the frame bends were the ones used on the ELstar grass and trials bikes. Steve Wilson had told me this a few weeks ago I seem to remember, but it had slipped my mind.

You can also see that the engine oil for the pumped mixing system was held in this top tube bend...

~~~~~~~



Just thought, you would like to hear again one of those little motors running, and the gear selection explained...

~~~~~~~

Photo Courtesy Deryk Wylde. ORRe Classic sports motorcycles...

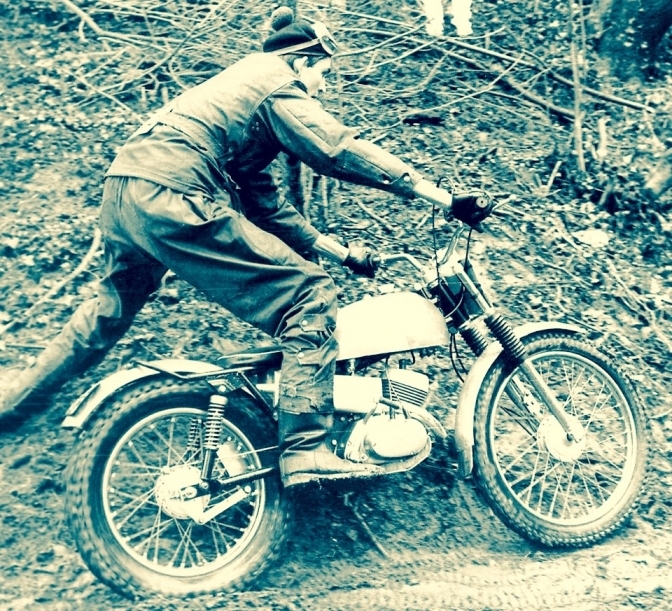

Another image of Chris,

~~~~~~~

You can see that Bob Haswell of ELstar fame had not lost his touch building the Taylor Suzuki frames. If you look at the swinging arm arrangement it was the same as the ELstars but in miniature.



Photo Courtesy Deryk Wylde again...

Bill Price, "Riding High" on the Taylor TC12o Suzuki.



Photo Courtesy  ORRe Classic Sports Motorcycle Action ...

 Jim Taylor riding a Taylor TC120 Suzuki in the Mitchell trial...

_______



ORRe CSMA photo again thanks Deryk...

~~~~~~~

I have now decided that this image is of a reworked Taylor TC120 Suzuki...



The Alta Suzuki...

Photo Courtesy ebay...USA...

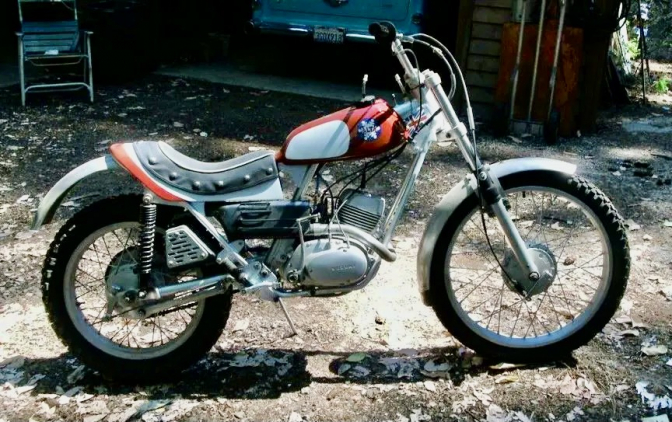

Mk 2 Alta Suzuki...from the USA... seems a number were exported there...

_______

Now this is the Alta made in Wales Suzuki TC120 engined trials bike.

 I will do this story later...

 But, one of the builders of the Alta Suzuki was named Taylor. A relation so I am informed.

The design was a collaborative exercise with Keith Taylor, Alan Killen, John Davies and Barry Fox. They all went to work at a newly set up factory for the production of the little Alta Suzuki bikes either on a full or part time basis.  Keith Taylor  sold his motorcycle shop and stock, to another motorcycle dealer to be able to open the  factory unit at the John Player estate in Clydach Swansea. Others who worked there were, “Humph”a mate of the four, and a young chap named  Fred. The bikes were sold in kit form to avoid purchase tax but this ended in 1972 when VAT was introduced. Alta then was unfortunately wound up as the profit margin was lost over night and the factory could not run at a loss for long...They were paying Suzuki too much for the engine and components at £172 and with rent and overheads boosting this to £180 plus, and the bikes selling for £220 the story had to end...

The bikes built by Alta were the 120cc TC 120 Suzuki engined  trials bike, and a schoolboy scrambles model. The Mk one frames were initially built by a outside frame builder, but later Mk two's fabricated in the factory unit. Alan Killen was the experienced fibre glass worker and built the seat and tank units,  after the initual first units were built by  Butler Mouldings as Keith Taylor had known Chris Butler, through his boating activities...John Davies had also known Chris Butler from their trials riding.

 Looking at the Mk One Alta. it is obvious that the frame is a copy of the Taylor Suzuki with an Altered subframe... Even the swinging arm is the same Elstar reincarnation, from the Taylor bikes...

The Mk two Alta frame  was not so pretty in the welding, and had the added front down and under engine tubes that were there purely as cosmetic items as customers prefered the look it was said...

So how many of these bikes were built the suggestion that a figure of 190 seems very high to me to be built by the number of staff in the short time scale.



Photo Courtesy Offroad Archives...

Martin Lampkin's Alta Mk 1 Suzuki.

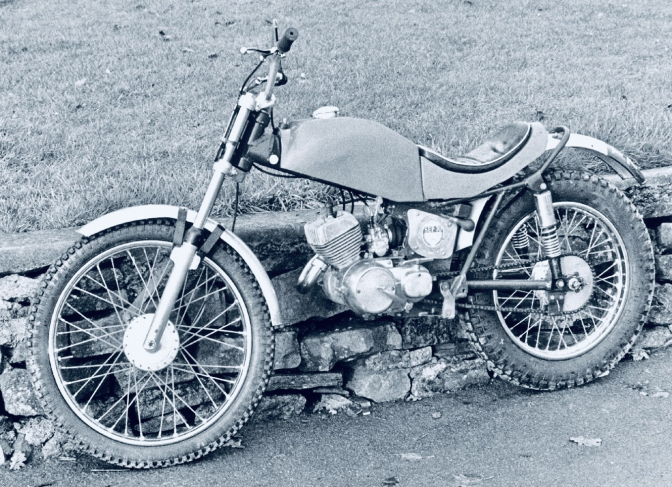

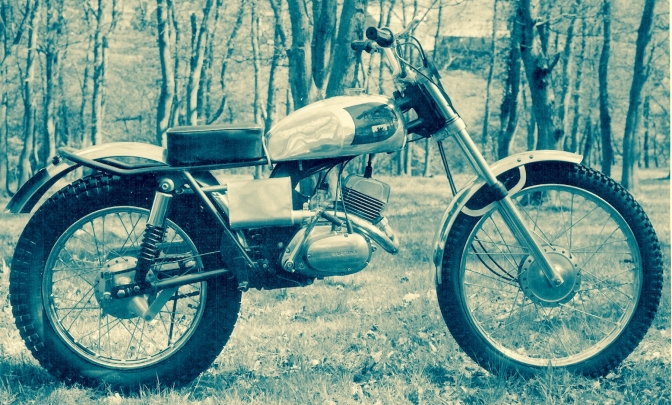

A Mk One Alta Suzuki...

Technical Specifcations:-

  • Engine: Suzuki TC120, six gears 3 low/high
    Bore: 52mm Stroke 56mm
    Compression ratio: 11:1
    12 bhp at 7500
    Frame: Duplex with large bore top tube holding 1.3 pints of oil for the posilube system. Large diameter swing arm with silentbloc pivot bushes. Timken Taper roller head bearings.
    Wheels & forks: Steel rims 5” light alloy hubs front 2.75x21 Rear wheel 4.00x18”. Alloy rear sprocket and cush rubber hub
    Dunlop Trials Universal Tyres. REH Middleweight forks with alloy sliders. Alloy mudguards.
    Tank: Glass Fibre 1.25 gallons with 1 pint reserve.

Photos Courtesy ebay...

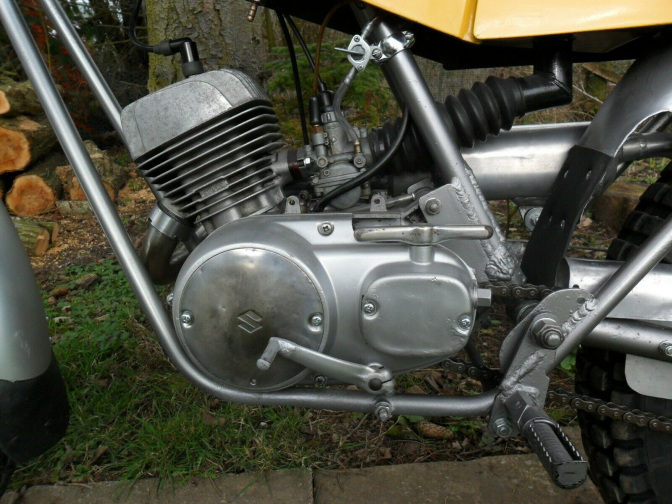

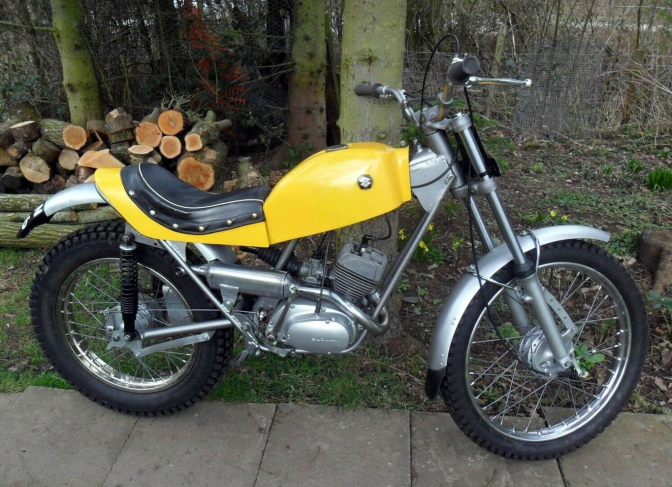

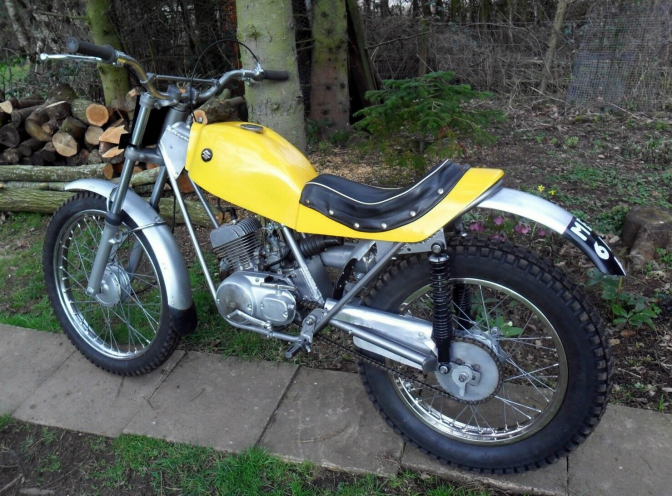

Here is a Alta Mk2 Suzuki TC 120 that was for sale on the ebay web site. in 2020...



Photo Courtesy ebay again...

You can see that this has the Mk 2 Alta frame that is not as neat as the Mk 1 frame that was said to be built by an outside frame builder, and the Mk 2  has the added front down tubes.



Photo Courtesy ebay...

Now this machine has been about since at the latest 1973, so has bound to have had work done on the little bike... So I think some of the frame has been rewelded, but I still like the Alta Mk1 Suzuki version better...



Photo Courtesy Offroad Archives...



We think this shot is of a 1970 Alta Mk Two Suzuki..with engine under run rails... and now confirmed thank's chaps... John Hemingway...said to be one of the best mini-bike pilots...

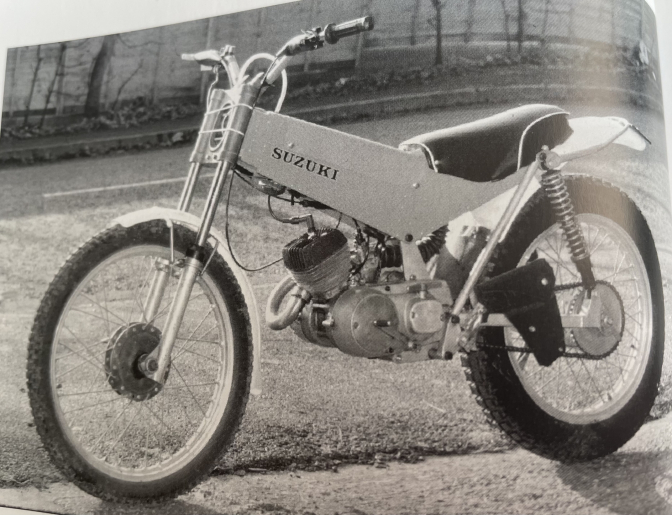

Maclaren TC120 Suzuki...

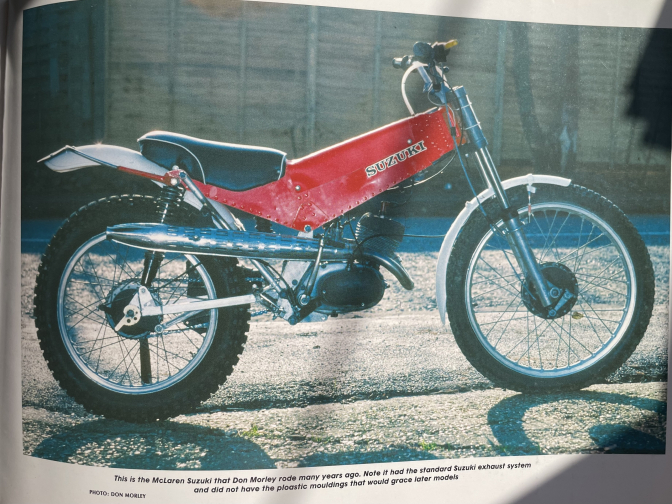

Photo Courtesy Offroad Review Number 75 and Don Morley...

The second prototype machine that Don Morley was given to test (as a Clubman)...Read full story in the Offroad Review number 75...

_______

More information later...John Hemingway also rode the Maclaren version of the TC120 Suzuki, this bike, was brought to the market after Heron Suzuki GB boss Gerald Ronson had purchased Mclaren after Bruce Maclaren died. The little bike was designed by Mclaren designer Tony Helder, and the first bike put together by engineers Roger Northcote-Smith, and Ron Lewis.  Made by an offshoot Trojan Engineering,(remember the Brooke Bond  vans) that also built the Maclaren customer race cars...

The constuction was a monocoque made of aluminium sheet riveted together, and lined with plastic sheet and sealed with a foul smelling yellow gel, with the steering head and one-peice front fork yokes of magnisium. this caused some problems... swinging arm was a lightweight box section tubing unit. There were 71 of these little Suzuki's built and sold...in 1971. but only an handfull left now in 2024...

Do you know of one?



Photo Courtesy Deryk Wylde Offroad Review and Don Morley...

You can see the one piece front fork yoke made from billet Magnesium... the fork legs were units from MP ...DMW. the wheel spindle ends were changeable so to alter wheelbase and rake...

~~~~~~~



More stories later .
