The Smallshaw’s... and George...



Photo Courtesy Deryk Wylde ORR.

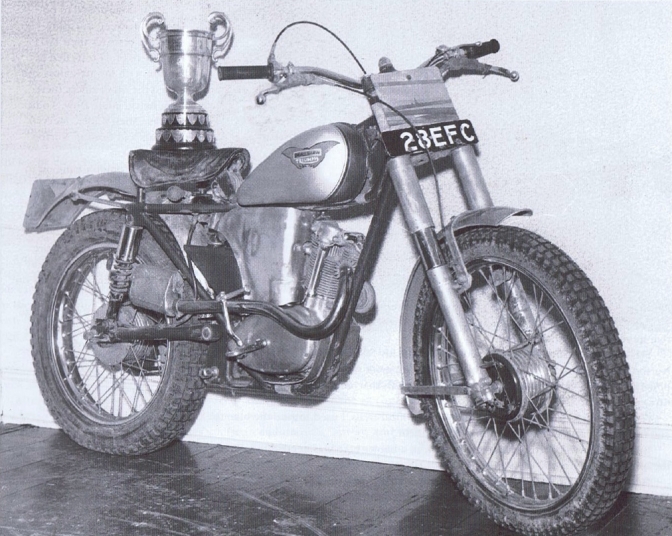

"The Smallshaw Triumph Cub."..

One of those coincident stories again. And material in the back of my head and on the computer that I have been going to use for a story for ages.

Then last week (April 2019) I had an email from a Mr. Mike Smallshaw, he had just purchased a Foster Otter trials bike, and wanted to know what thread and size was the brass oil filler cap in the frame.

I sent a mail back saying ¾” BSP and gave him the number for one in a Toolstation catalogue.

A mail back said it did not fit as it was too big… Strange I thought, I better ask for photos of the bike so that would help me to see the problem..

The photos arrived of the bike, and the next morning I took a closer look at them, and something clicked……….

With both the name and the image of the bike in the photos.

The name Smallshaw I remembered linked to a special Triumph Cub trials bike from the sixties. And ridden by the grand old chap of motorcycle trials, George Greenland, still riding trials at Eighty-seven years young. I always remembered George, has he bought the Triumph 3TA trials bike I built up for Dan Shorey, out of a crashed bike. Dan then swapping over to sidecar trials sold the bike to George… The bike he then built into his own frame, and again fitted with James hubs and AMC forks like the Smallshaw Triumph Cub had been..

The Foster Otter in the photos clicked as one I had placed for sale on the Otter site a year or more back.

And was for sale then by Bryce Haines.

We were getting there; I again mailed Mike with the information about the Otter and said he may know Dick Ramplee..

Mike mailed me back and said he knew Dick very well and had ridden his Otter a couple of weeks before, whilst deciding what bike to buy. And had I seen the article about his mate George Greenland in the Saturday Express, I mailed back saying I had material about George and the Smallshaw Triumph Cub that George rode, from Deryk Wylde and ORR.

And asked if I could do a page on his Foster Otter bike. In the mean time I had emailed Ian Ballard for information about the bike that Mike had bought. And was it the bike built by Colin Harvie?

It was then when Ian mailed me back that I heard of the sudden death of Carol Foster, and every thing had been going so well with the story up-until then.

Then Mike sent me loads of photos of his father Des and the Smallshaw Specials… So the story had just got bigger, and the page must now be done, for more than one reason. So here is a start, of it and it will run, has I always say…….



~~~~~~~

Photo Courtesy  Mike Smallshaw.

This is Mikes newly acquired Foster Otter, frame Number 24.



~~~~~~~

 We better start with the illustrious history of a trials family.

the Smallshaws.

~~~~~~~

Over to you Mike...



As you have shown interest in my Father I thought I would give you a few more details.

After riding a BSA B31, he designed and built (making his own frame) a 197 6E powered Smallshaw Special.
He was very successful on this winning the Southern Centre Championship four years on the trot, 1953,54,55, and 56. He was leading in 57 but unfortunately lost the sight in one eye and so lost the title to, I believe  Colin Lambert.
Before his eye problem he was constructing a new bike with rear suspension and a Triumph Cub motor,( supplied by Henry Vale of Triumph Motorcycles) but he found with one eye he was unable to ride to his previous standard, so sold the bike to George Greenland  who finished the bike, and had a lot of success on it. (George worked for father Des at his engineering works at the time,)
George eventualy sold the bike, but a few years ago saw it advertised on ebay without an engine. He bought the bike and rebuilt it as it was when he rode it.
He still has it in his bike collection today....

Attached are some scans of; some articles written by Mike Jackson, father riding his BSA and Smallshaw Special, both Smallshaws in the workshop, George with the cub engined bike, and some of my fathers trophies.

I wonder if the BSA still exists, I believe he sold it to Eddie Austin. There is no record of the registration, GRU 835 on the DVLA website.

~~~~~~~

All photos Below Courtesy of Mike Smallshaw©...

HD (Des) Smallshaw enjoying the ride on the BSA B31...

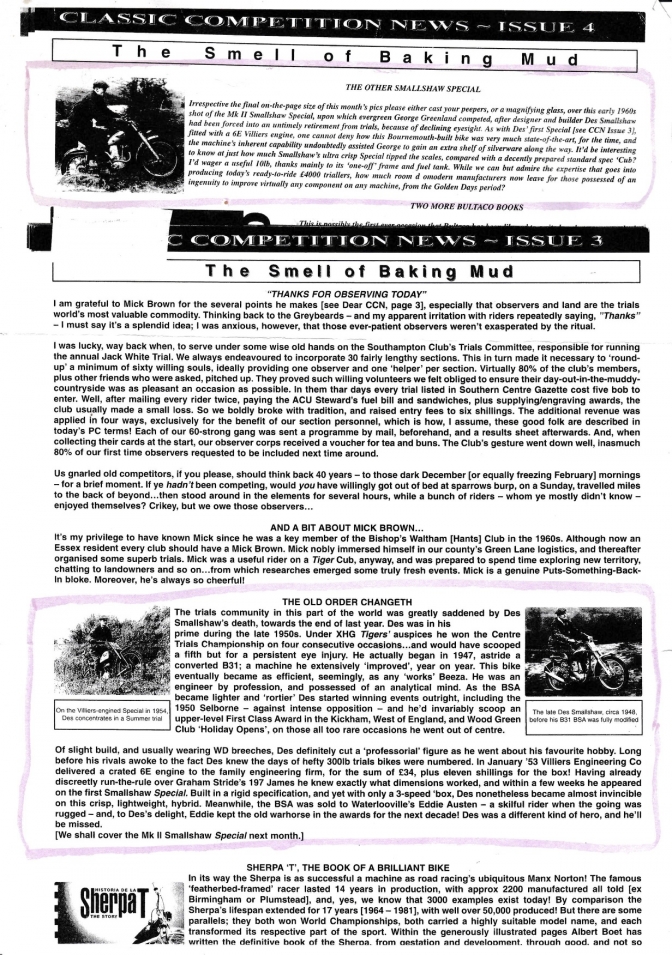

The Mike Jackson snippets of Des's career...





Des riding the Villiers engined MK1 Smallshaw Special in the mud of the Kickham trial...







And again the same MK1 Smallshaw Special.. but in the warmth of a summer trial...





And just look at the array of trophies that Des won in his illustrious trials career...

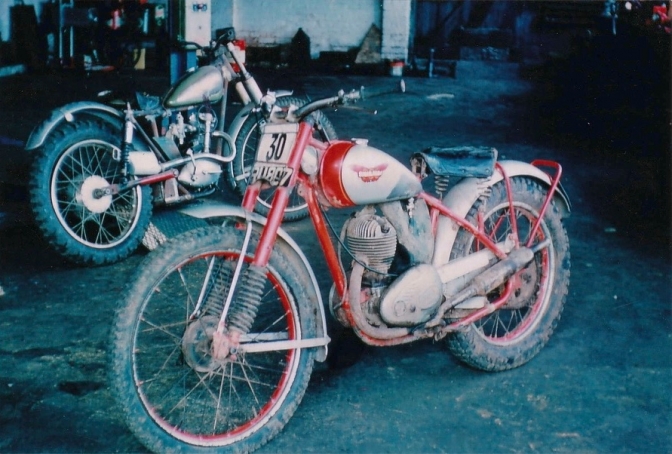

Both Smallshaw Specials in the Smallshaw Engineering works...

~~~



A Young George Greenland, aboard the Mk two Special "The Cub"...

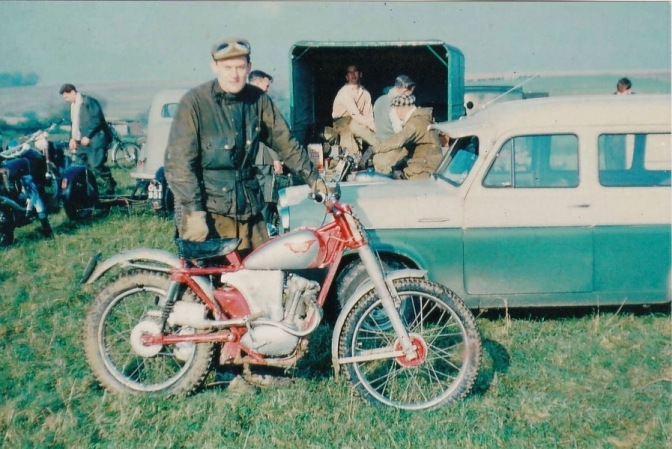

And a nice colour shot of George and the Smallshaw Special. Note: The tank is a James item modified by Des, and the signature Smallshaw carburettor and air cleaner guard.

When George left the Smallshaws Engineering company, he moved to Oxford to become a specialist engineer at Morris Motors.

He got to know scrambler Pat Lamper who was at the time riding for DOT. motorcycles, and this friendship led to George getting a ride on a works DOT. trials bike for two years.

 It was then, that he decided that the best way forward was to build his own trials machine, this is when he bought the Triumph 3Ta from Dan Shorey at North Bar Garage Banbury, as its basis, and built a new frame for the bike, but then found it was not up-too the power of the 3Ta motor, so went for a frame from Robin Rhind- Tutt... Where the rest his history, when George decided to take to three wheels as well..

More on this story later...



Here George riding the North-Bar basis Triumph 3TA...



Photo Courtesy Deryk Wylde.



George built the Triumph 3TA very much on the same page as the Smallshaw Special Cub, even down to the use of a Blumells saddle. And the tubing does look a little fine George.......Greeves alloy tank?



We now go back to where we came in on this story, and back to son Mike Smallshaw's acquisition of the Southern Area built

Foster Otter.

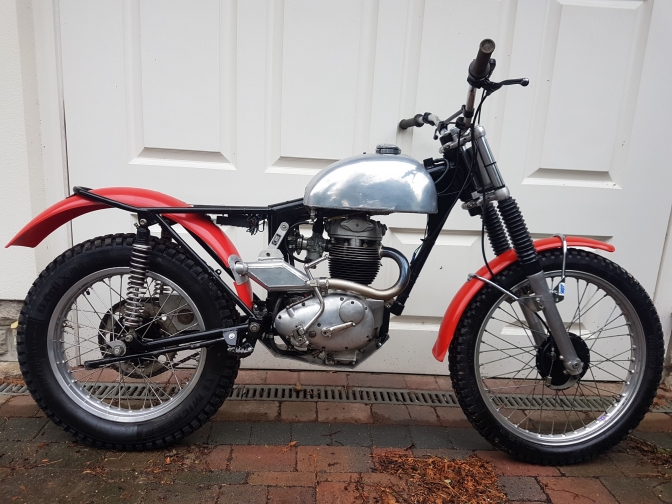

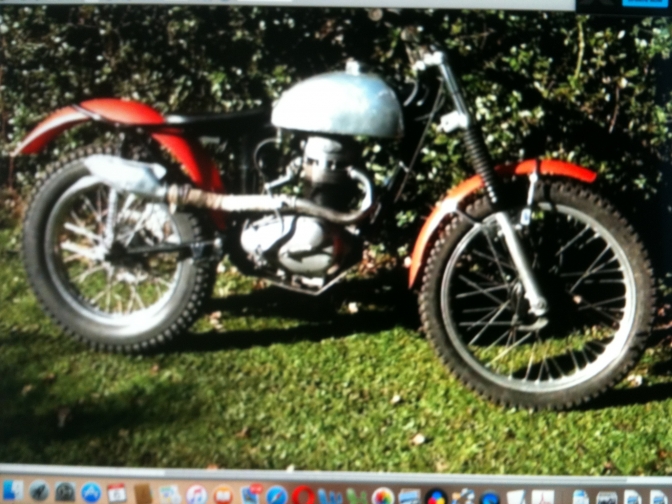

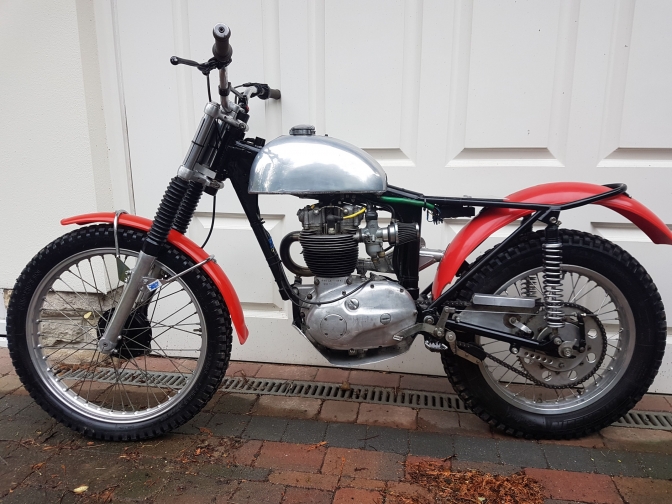

This is how I remembered the Foster Otter, when Ian Ballard told me it was for sale on a club website by Bryce Haines..





A  tidier exhaust system now fitted to the B40 Foster Otter.



Photo Credited...

Dick Ramplee aboard his.Foster BSA Otter...

 Dick now mainly rides on the continent accompanied by George Greenland... And the Gang...



I will continue with this story later...



19/11/2019...



Photos Courtesy Mike Smallshaw...

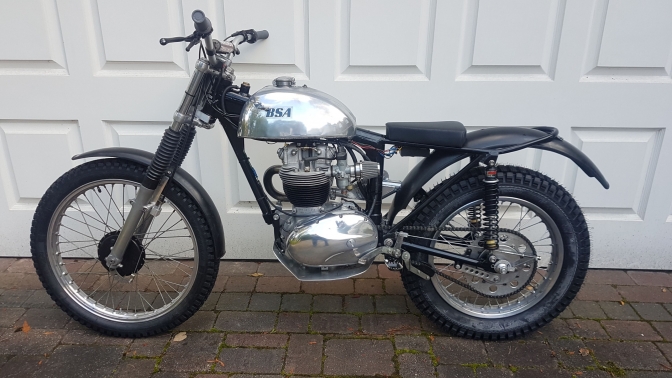

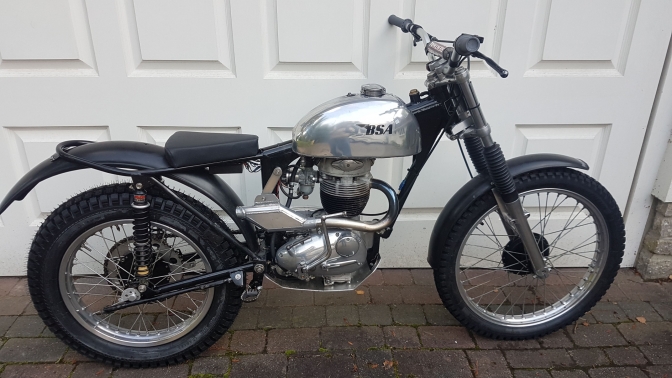

The Revived Foster Otter B40, even with new headstock badge...







We continue with the Foster Otter that Mike had bought…

The first trial Mike attended with the bike, went well enough, but he thought that the bike was out of line, as the chain did not line up with the sprocket..

And there seemed to be a discrepancy with the steering… In the back of my head I seemed to recall that Ian had said that Bryce had had problems with the frame…

After a few emails between Mike and myself, we decided I needed to look at the frame, and as Mike was going to rebuild the engine on the bike, now was the time to do it. So Mike brought the frame up for me to put onto the Foster frame jig and see if it was really out of true. I had noticed in the photos before I had the frame with me, that some of the welding around the steering head looked a bit iffy to say the least...

It looked a lot worse with the frame in front of me. Well the next day I fitted the frame into the jig. Most things lined up except the sub frame had been modified slightly for some reason and the swinging arm box re-enforced. So although the swinging-arm mount holes were the same on both sides it was a job to position the jig spindle.

But the big problem was the steering head, this was well out, by a good ¼” on the left-hand side.

There was only one thing for it, and that was to remove the whole front-end assembly from the top tube. And when the flinch (gusset) plates were removed I could see that a welded repair had been carried out in this area and the front tube.

There was only one sensible decision, and that was to make a new steering head assembly and fit a new T45 front down tube as there were cracks in the old Reynolds tube.

So a new front end was now assembled and bronze welded onto the original frames T45 top tube. Along with a new Foster type oil filler cap and neck… Some of the other welds on the frame were tided up and the swinging arm placed into the Foster jig for that Item, and checked...

Mike picked the revitalised frame up, and was pleased with what he now had.



He spent the next couple of months rebuilding the engine and bike. Then went and won his class in the first ride on the bike since its rebuild. And even threatened to fit a REH front end onto the bike, as he was that pleased with the ride… Nice one Mike, and like you say another Foster Otter saved.........



Repair photos..

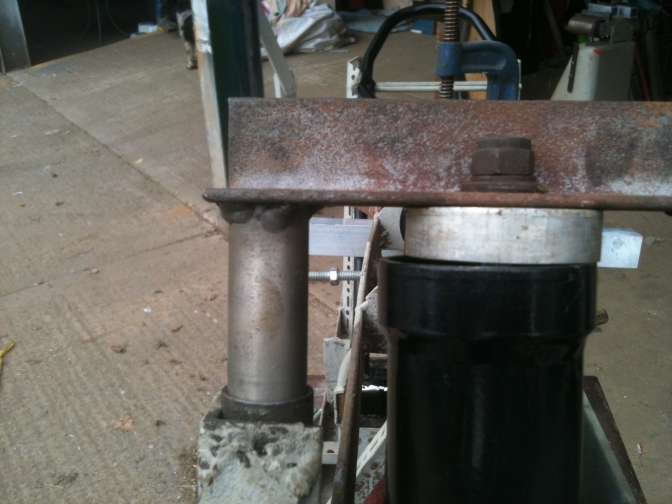

Yes, That far out...

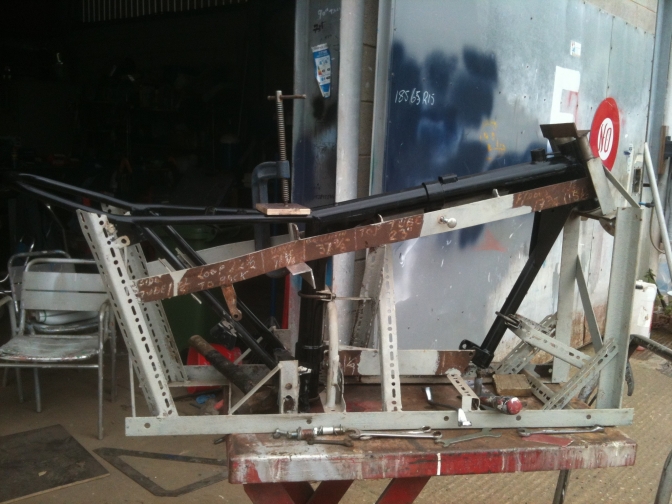

Frame fitted into the Foster Jig...

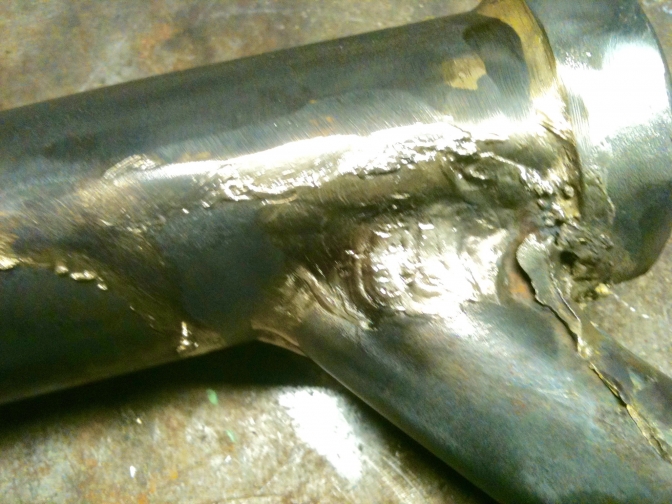

This is what I found under the flinch plates.

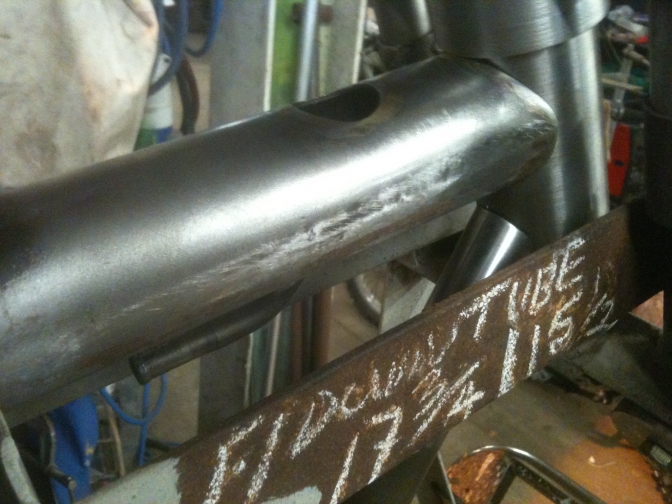

New headstock and down-tube in place...

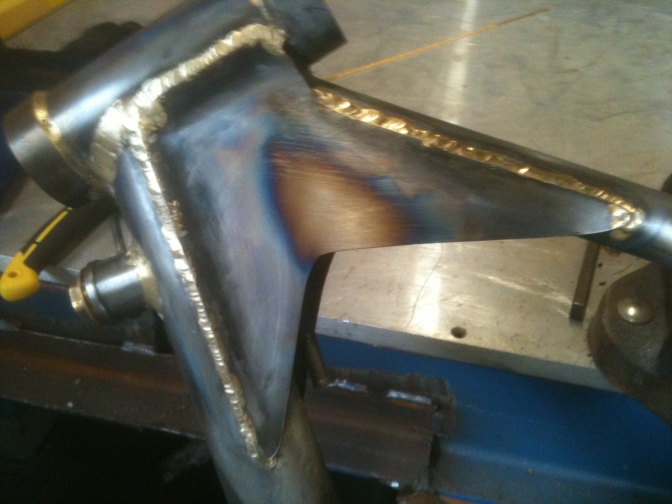

Bronze welded with new flinch plates...And Foster oil filler neck-cap...



So the bike was as I say rebuilt and ready to roll, and then we get the Covid virus roll in, and it has stopped the use and fun riding any motorcyle up until now 2021...

Good luck with the Foster Otter  Mike hope you get to win more classes soon... We will be watching...



Update...

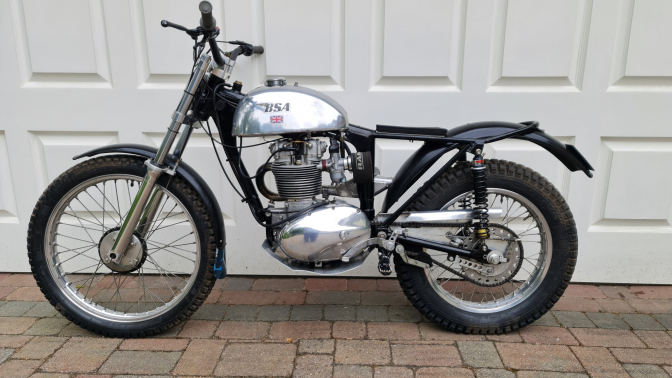

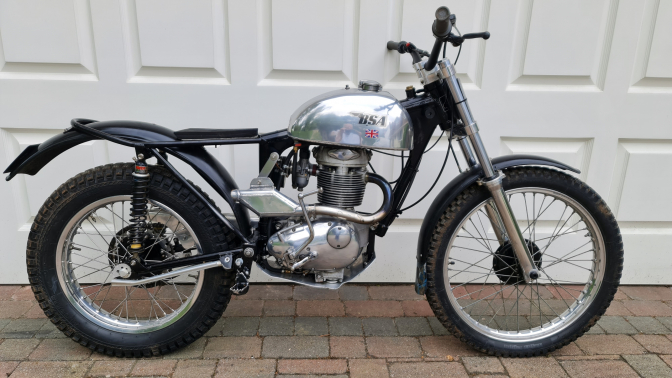

Photo Courtesy Mike Smallshaw...

Hi Charlie, hope you're keeping well, great that you are keeping the Otter name alive.
I thought you might be interested in the improvements I've made to the bike:

REH forks with the VRS system fitted in one leg to stop them bottoming out on steep drops.
Electrex-World ignition; replaces the Boyer Bransden system, a lot simpler and works fine. This was fitted at the same time as a new Amal Premier as the bike was getting difficult to start when hot, from Surrey Cycles, works perfectly.
Alloy barrel, this was a square barrel that I reshaped, not sure what it came off, B44? but I had to have a drain tube fitted from the rockers and a plate at the bottom to bring it to the correct height.
NEB sleeve gear, lay shaft and outrigger plate to raise the overall gearing.

Photos Courtesy Mike Smallshaw...
Alloy clutch drum and plates, I did consider a Pete Kirby belt drive, but in my experience diaphragm clutches can be a little abrupt and as mine is one finger light and very progressive I thought best left alone!
I've lowered the footrests and raised the forks about 15mm through the yokes. I feel a lot more confident on the bike now and love riding it.
I would like to get something as an alternative to put alongside this one in the garage, perhaps an enlarged 250 motor in a Faber frame, I'd like to have something with similar low down power to mine, but that would perhaps rev higher. I notice that you have similar bikes in your stable, and they will be built to high standards, so if you were to consider selling one I would be very interested.....

I went to George's 90th party, what a man. He did say a while ago that he'd retire from trials when he got to 90, but now he's changed his mind and will carry on!

Finally I would like to thank you again for sorting out the frame on my bike, it gave it a new lease of life.

Arbuthnot next weekend!

All the best...Mike.

More Later.
